Dual-output gate driver IC featuring 1.5A maximum output current and 50ns propagation delay. This surface-mount component offers a 4.5V to 18V supply voltage range and operates from -40°C to 85°C. It includes two drivers with 30ns fall time and 12Ω on-state resistance, packaged in an 8-pin SOIC. RoHS compliant with 470mW power dissipation.
PackageSOIC
Current4.5mA
MountingSurface Mount
Power470mW
Quick Jump:
Technical Specifications
Microchip TC4428EOA technical specifications.
General
Package/Case
SOIC
Fall Time
30ns
Height
0.059inch
Input Bias Current
10uA
Lead Free
Lead Free
Length
0.192inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Power Dissipation
470mW
Max Supply Current
4.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
On-State Resistance
12R
Package Quantity
100
Packaging
Rail/Tube
Power Dissipation
470mW
Propagation Delay
50ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
4.5mA
Turn-On Delay Time
50ns
Width
0.154inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC4428EOA Datasheet
Download the complete datasheet for Microchip TC4428EOA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

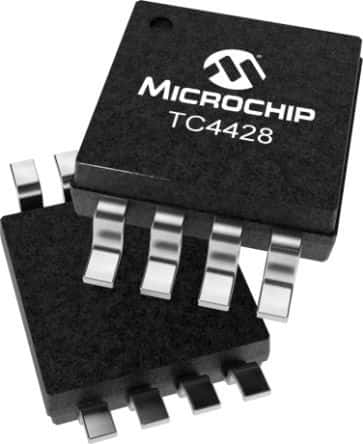

Product Images
