PackagePDIP
Current3mA
MountingThrough Hole
Power730mW
Quick Jump:
Technical Specifications
Microchip TC4429EPA technical specifications.
General
Package/Case
PDIP
Channel Type
Single
Fall Time
35ns
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
6A
Max Power Dissipation
730mW
Max Supply Current
1.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
1
Number of Outputs
1
Package Quantity
60
Packaging
Rail/Tube
Power Dissipation
730mW
Propagation Delay
75ns
RoHS Compliant
Yes
Supply Current
3mA
Turn-On Delay Time
100ps
Compliance
RoHS
Compliant
Datasheet
Microchip TC4429EPA Datasheet
Download the complete datasheet for Microchip TC4429EPA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

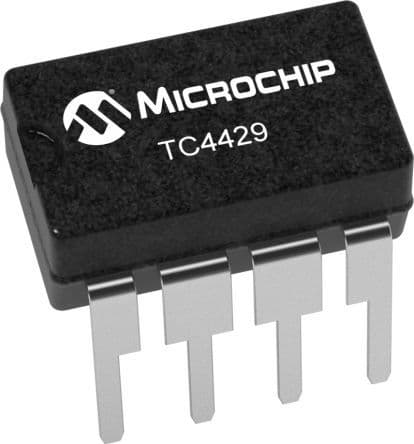

Product Images
