Single-channel MOSFET driver with 1.5A output current, designed for through-hole mounting in a PDIP-8 package. Features a 33ns fall time and 90ns propagation delay, operating from a 4.5V to 30V supply voltage. Maximum power dissipation is 730mW, with a maximum supply current of 4mA. Suitable for applications within a -40°C to 125°C temperature range.
PackagePDIP
Current400uA
MountingThrough Hole
Power730mW
Quick Jump:
Technical Specifications
Microchip TC4431VPA technical specifications.
General
Package/Case
PDIP
Channel Type
Single
Fall Time
33ns
Height
3.3mm
Input Bias Current
10uA
Length
9.27mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Power Dissipation
730mW
Max Supply Current
4mA
Max Supply Voltage
30V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
1
Number of Outputs
1
On-State Resistance
12R
Output Current
1.5A
Package Quantity
60
Packaging
Rail/Tube
Power Dissipation
730mW
Propagation Delay
90ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
400uA
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC4431VPA Datasheet
Download the complete datasheet for Microchip TC4431VPA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

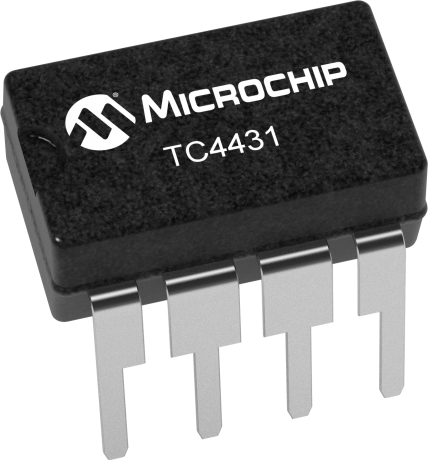

Product Images
