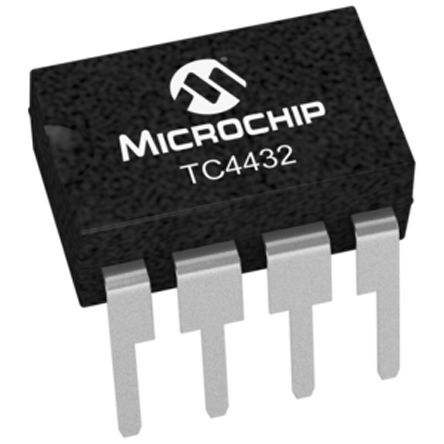

1.5A MOSFET driver, PDIP-8 package, featuring 33ns fall time and 90ns propagation delay. Operates from 4.5V to 30V supply voltage with a maximum supply current of 4mA. Through-hole mountable with 12Ω on-state resistance and 1.5A output current. RoHS compliant, with a maximum power dissipation of 730mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TC4432VPA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Fall Time | 33ns |
| Height | 3.3mm |
| Input Bias Current | 10uA |
| Length | 9.27mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 730mW |
| Max Supply Current | 4mA |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 12R |
| Output Current | 1.5A |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Power Dissipation | 730mW |
| Propagation Delay | 90ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 400uA |
| Width | 6.35mm |
| RoHS | Compliant |
