Technical Specifications
Microchip TC4467COE713 technical specifications.
General
| Package/Case | SOIC |
| Channel Type | Independent |
| Fall Time | 25ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.2A |
| Max Power Dissipation | 760mW |
| Max Supply Current | 4mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Outputs | 4 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 760mW |
| Propagation Delay | 75ns |
| RoHS Compliant | Yes |
| Supply Current | 4mA |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC4467COE713 Datasheet
Download the complete datasheet for Microchip TC4467COE713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

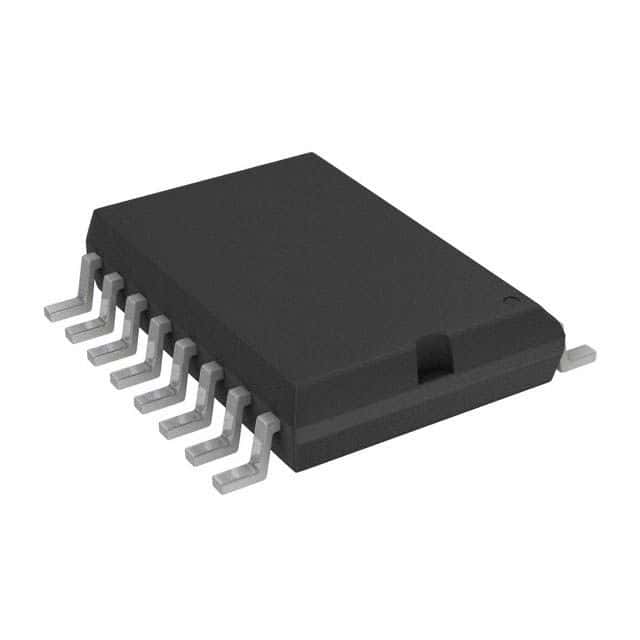

Product Images
