Technical Specifications
Microchip TC4467CPD technical specifications.
General
| Package/Case | PDIP |
| Fall Time | 25ns |
| Height | 3.3mm |
| Lead Free | Lead Free |
| Length | 19.05mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.2A |
| Max Power Dissipation | 800mW |
| Max Supply Current | 4mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Drivers | 4 |
| Number of Outputs | 4 |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Power Dissipation | 800mW |
| Propagation Delay | 75ns |
| RoHS Compliant | Yes |
| Supply Current | 4mA |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC4467CPD Datasheet
Download the complete datasheet for Microchip TC4467CPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

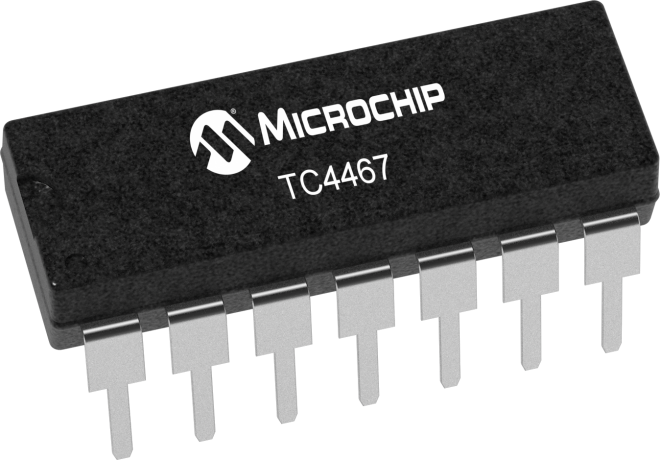

Product Images
