Four-channel gate driver IC featuring a maximum output current of 1.2A and a maximum supply voltage of 18V. Operates within a 4.5V to 18V supply voltage range, with a maximum supply current of 4mA. Offers a propagation delay of 75ns and a fall time of 25ns. Packaged in a lead-free SOIC with dimensions of 10.49mm length, 7.59mm width, and 2.34mm height. RoHS compliant with a maximum power dissipation of 760mW.
PackageSOIC
Current4mA
Power760mW
Quick Jump:
Technical Specifications
Microchip TC4468EOE technical specifications.
General
| Package/Case | SOIC |
| Fall Time | 25ns |
| Height | 2.34mm |
| Lead Free | Lead Free |
| Length | 10.49mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.2A |
| Max Power Dissipation | 760mW |
| Max Supply Current | 4mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Number of Drivers | 4 |
| Number of Outputs | 4 |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Power Dissipation | 760mW |
| Propagation Delay | 75ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 4mA |
| Turn-On Delay Time | 75ns |
| Width | 7.59mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC4468EOE Datasheet
Download the complete datasheet for Microchip TC4468EOE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

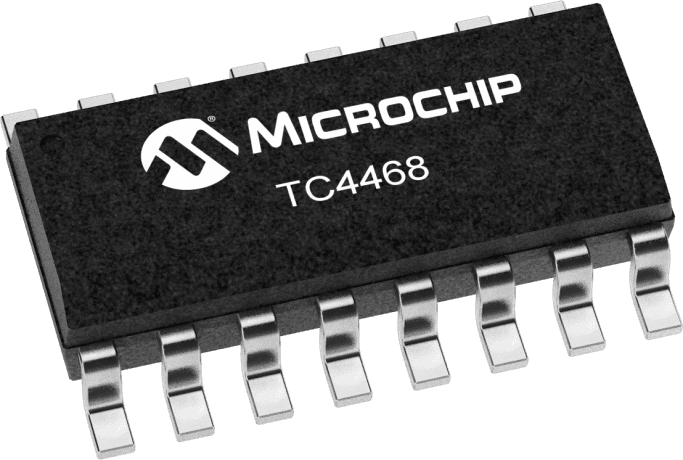

Product Images
