The TC4468MJD is a 4-channel independent gate driver IC with a maximum operating temperature range of -55°C to 125°C. It is packaged in a CDIP-14 package and is lead free. The device has a maximum output current of 1.2A and a maximum power dissipation of 840mW. It operates with a supply voltage range of 4.5V to 18V and has a supply current of 4mA. The TC4468MJD is RoHS compliant and is suitable for use in power management applications.
PackageCDIP
Current4mA
MountingThrough Hole
Power840mW
Quick Jump:
Technical Specifications
Microchip TC4468MJD technical specifications.
General
| Package/Case | CDIP |
| Channel Type | Independent |
| Fall Time | 25ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 1.2A |
| Max Power Dissipation | 840mW |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Drivers | 4 |
| Number of Outputs | 4 |
| Package Quantity | 29 |
| Packaging | Rail/Tube |
| Power Dissipation | 840mW |
| Propagation Delay | 75ns |
| RoHS Compliant | Yes |
| Supply Current | 4mA |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC4468MJD Datasheet
Download the complete datasheet for Microchip TC4468MJD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

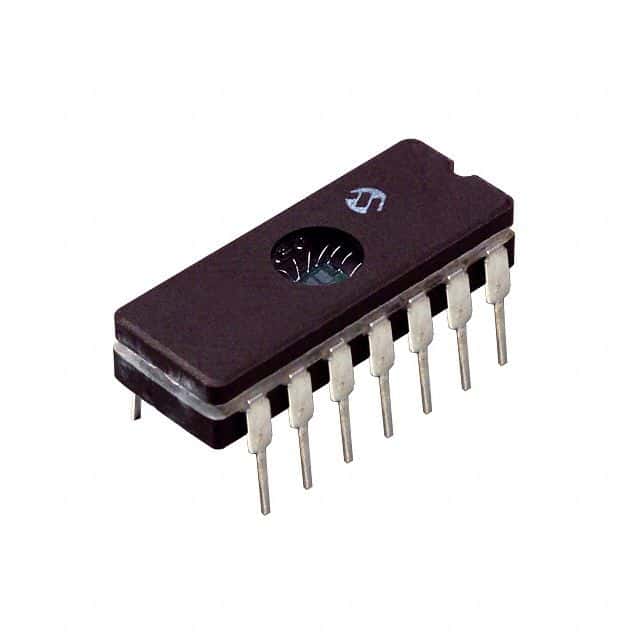

Product Images
