Single-channel MOSFET driver with 1.5A maximum output current, operating from a 4V to 6V supply. Features a 1MHz switching frequency, 35ns fall time, and 55ns propagation delay. This surface mountable SOIC-16 package offers 760mW power dissipation and operates within a -40°C to 85°C temperature range. RoHS compliant and lead-free.
Frequency1MHz
PackageSOIC
Current2.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC4627EOE technical specifications.
General
| Package/Case | SOIC |
| Channel Type | Single |
| Fall Time | 35ns |
| Frequency | 1MHz |
| Height | 2.34mm |
| Lead Free | Lead Free |
| Length | 10.49mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 760mW |
| Max Supply Current | 2.5mA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Power Dissipation | 760mW |
| Propagation Delay | 55ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2.5mA |
| Width | 7.59mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC4627EOE Datasheet
Download the complete datasheet for Microchip TC4627EOE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

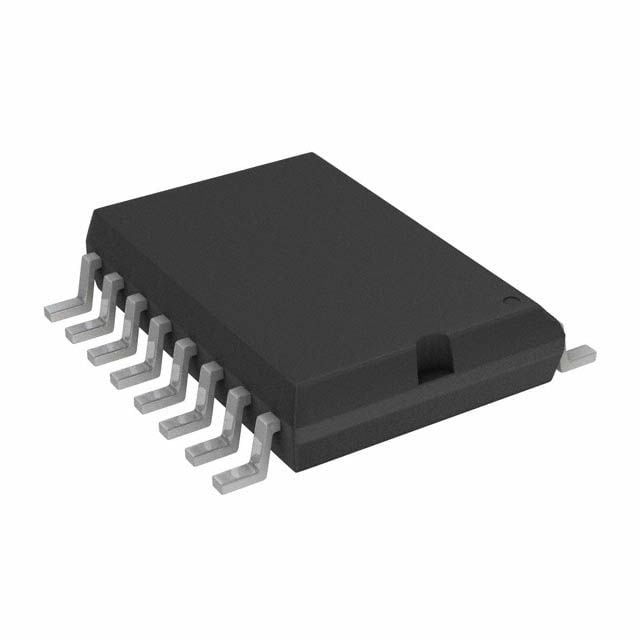

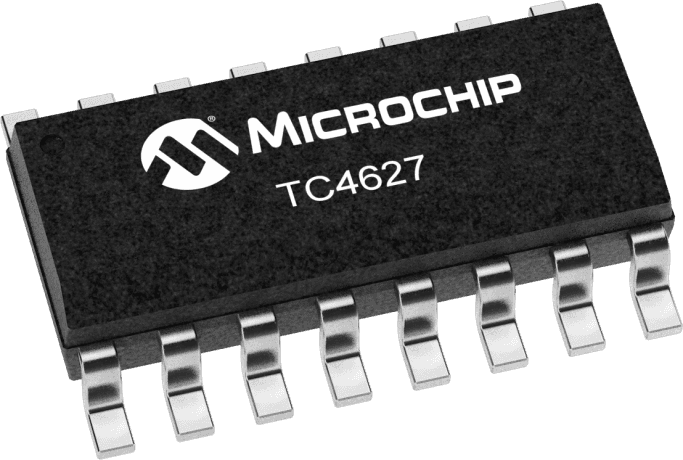

Product Images
