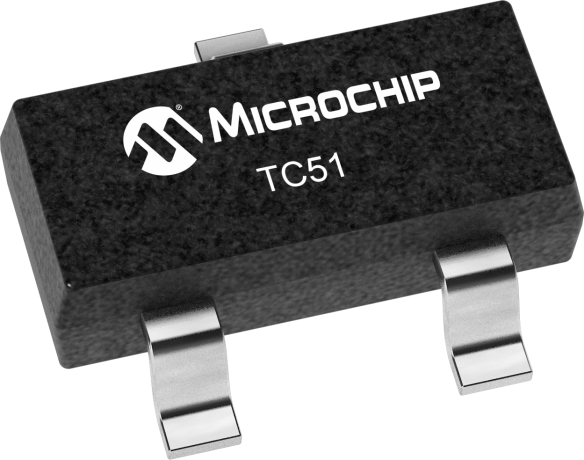

The TC51N2202ECBTR is a surface mount Simple Reset/Power-On Reset IC from Microchip. It operates over a temperature range of -40°C to 85°C and has a maximum power dissipation of 240mW. This IC has a threshold voltage of 2.2V and a quiescent current of 2uA. It is available in a Tape and Reel package with 3000 units per reel. The TC51N2202ECBTR is RoHS compliant and suitable for use in general power management applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TC51N2202ECBTR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-236-3 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 240mW |
| Max Reset Threshold Voltage | 2.244V |
| Min Reset Threshold Voltage | 2.156V |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 700mV |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 4.2uA |
| Overvoltage Threshold | 2.244V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 240mW |
| Quiescent Current | 2uA |
| Reset | Active Low |
| Reset Timeout | 50ms |
| RoHS Compliant | Yes |
| Threshold Voltage | 2.2V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.156V |
| Watchdog Timer | No |
| RoHS | Compliant |
