Surface mount voltage detector IC with a 2.7V threshold, featuring active-low reset output. Monitors a single voltage with a minimum supply voltage of 700mV and a maximum of 10V. Offers a low operating supply current of 3.6µA and quiescent current of 1.1µA, with a maximum power dissipation of 500mW. Packaged in a SOT-89-3 case, this lead-free component operates between -40°C and 85°C.
PackageSOT-89-3
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Microchip TC54VC2702EMB713 technical specifications.
General
| Package/Case | SOT-89-3 |
| Height | 1.6mm |
| Lead Free | Contains Lead |
| Length | 4.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Max Reset Threshold Voltage | 2.75V |
| Min Reset Threshold Voltage | 2.65V |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 700mV |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 3.6uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 2.75V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Quiescent Current | 1.1uA |
| Reset | Active Low |
| RoHS Compliant | Yes |
| Threshold Voltage | 2.7V |
| Type | Simple Reset/Power-On Reset, Voltage Detector |
| Undervoltage Threshold | 2.65V |
| Watchdog Timer | No |
| Width | 2.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC54VC2702EMB713 Datasheet
Download the complete datasheet for Microchip TC54VC2702EMB713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

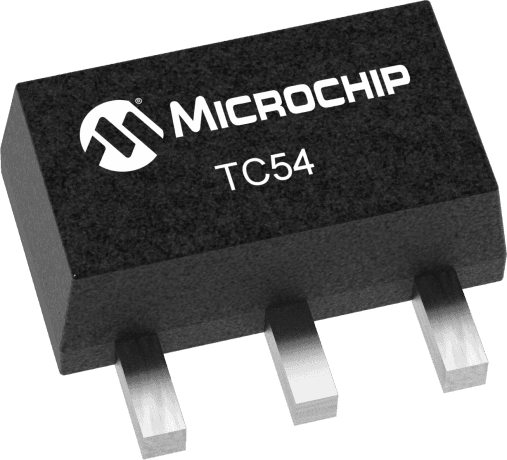

Product Images
