1-channel voltage detector IC with active-low reset, featuring a 4.2V threshold and totem-pole output. This surface-mount component operates from 700mV to 10V, with a maximum power dissipation of 500mW. Designed for lead-free, SOT-89-3 packaging, it offers a quiescent current of 1.1uA and an operating supply current of 3.6uA. Suitable for a wide temperature range of -40°C to 85°C, this RoHS compliant device is ideal for power supply monitoring applications.
PackageSOT-89-3
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Microchip TC54VC4202EMB713 technical specifications.
General
| Package/Case | SOT-89-3 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Max Reset Threshold Voltage | 4.28V |
| Min Reset Threshold Voltage | 4.12V |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 700mV |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 3.6uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 4.28V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Quiescent Current | 1.1uA |
| Reset | Active Low |
| RoHS Compliant | Yes |
| Threshold Voltage | 4.2V |
| Type | Simple Reset/Power-On Reset, Voltage Detector |
| Undervoltage Threshold | 4.12V |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC54VC4202EMB713 Datasheet
Download the complete datasheet for Microchip TC54VC4202EMB713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

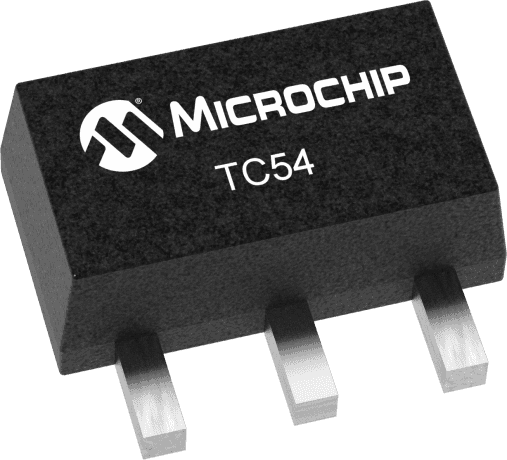

Product Images
