Surface mount voltage detector IC with a 4.3V threshold, featuring a 2% tolerance and active low reset. This power management component operates from 700mV to 10V supply voltage, with a maximum output current of 50mA and a power dissipation of 240mW. It monitors a single voltage and offers a quiescent current of 1.1uA. Packaged in a TO-236-3 (SC-59) SMT package, it measures 3.1mm x 1.8mm x 1.3mm and is supplied on tape and reel.
PackageTO-236-3
Current1uA
MountingSurface Mount
Power240mW
Quick Jump:
Technical Specifications
Microchip TC54VC4302ECB713 technical specifications.
General
| Package/Case | TO-236-3 |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Power Dissipation | 240mW |
| Max Reset Threshold Voltage | 4.39V |
| Min Reset Threshold Voltage | 4.21V |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 700mV |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 3.6uA |
| Output | TOTEM-POLE |
| Output Type | Voltage |
| Overvoltage Threshold | 4.39V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 240mW |
| Quiescent Current | 1.1uA |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| RoHS Compliant | Yes |
| Supply Current | 1uA |
| Termination | SMD/SMT |
| Threshold Voltage | 4.3V |
| Tolerance | 2% |
| Type | Simple Reset/Power-On Reset, Voltage Detector |
| Undervoltage Threshold | 4.21V |
| Watchdog Timer | No |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC54VC4302ECB713 Datasheet
Download the complete datasheet for Microchip TC54VC4302ECB713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

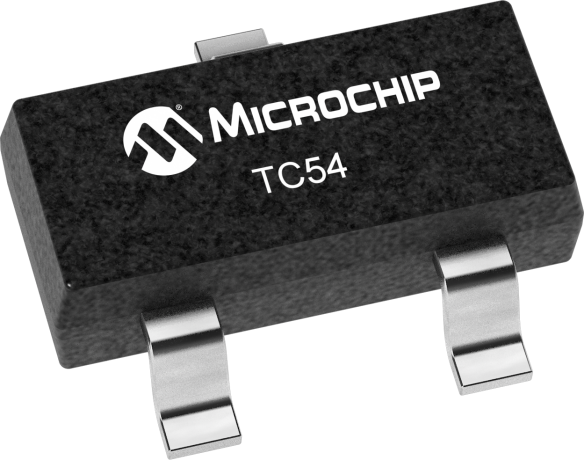

Product Images
