Surface mount voltage detector with a 4.5V threshold, featuring active low output and 2% tolerance. This power management IC operates from 700mV to 10V supply voltage, with a maximum power dissipation of 240mW. It monitors a single voltage, offering undervoltage and overvoltage thresholds of 4.41V and 4.59V respectively, and a quiescent current of 1.1uA. Packaged in a 3-pin SOT-23A (TO-236-3) for tape and reel distribution, this component is lead-free and RoHS compliant.
PackageTO-236-3
Current1.1uA
MountingSurface Mount
Power240mW
Quick Jump:
Technical Specifications
Microchip TC54VN4502ECB713 technical specifications.
General
| Package/Case | TO-236-3 |
| Height | 0.051inch |
| Lead Free | Lead Free |
| Length | 0.122inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Power Dissipation | 240mW |
| Max Reset Threshold Voltage | 4.59V |
| Min Reset Threshold Voltage | 4.41V |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 700mV |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Output Type | Voltage |
| Overvoltage Threshold | 4.59V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 240mW |
| Quiescent Current | 1.1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| RoHS Compliant | Yes |
| Supply Current | 1.1uA |
| Threshold Voltage | 4.5V |
| Tolerance | 2% |
| Type | Simple Reset/Power-On Reset, Voltage Detector |
| Undervoltage Threshold | 4.41V |
| Watchdog Timer | No |
| Width | 0.071inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC54VN4502ECB713 Datasheet
Download the complete datasheet for Microchip TC54VN4502ECB713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

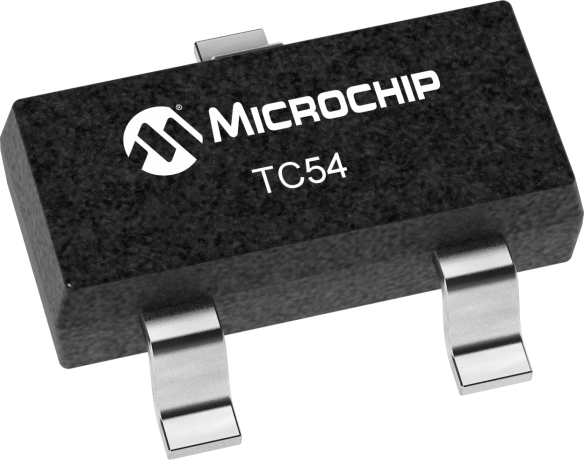

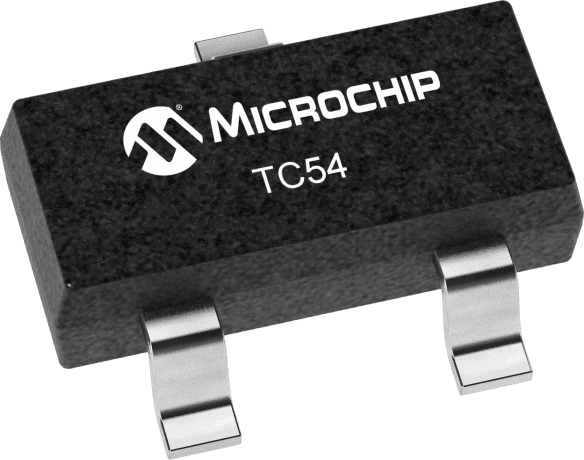

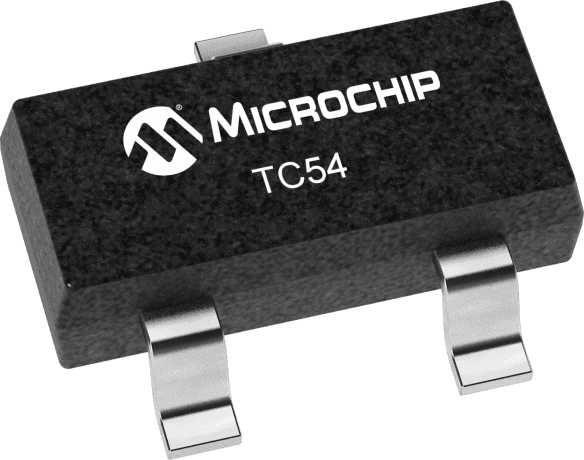

Product Images
