Specialty analog circuit, SOT-23-5 package, offering 4% accuracy. Features a minimum supply voltage of 2.7V and a maximum of 5.5V, with a typical operating supply current of 17uA. Maximum output current is 20mA, and maximum power dissipation is 570mW. Operating temperature range spans from -55°C to 135°C. This surface mount component is RoHS compliant and lead-free.
PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC6504P005VCTTR technical specifications.
General
| Accuracy | 4% |
| Package/Case | SOT-23-5 |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 2.95mm |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 20mA |
| Max Power Dissipation | 570mW |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Current | 17uA |
| Output Current | 20mA |
| Output Type | Digital, PUSH-PULL, Analog |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sensor Type | Temperature |
| Switching Temperature | 5°C |
| Termination | SMD/SMT |
| Width | 1.63mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC6504P005VCTTR Datasheet
Download the complete datasheet for Microchip TC6504P005VCTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

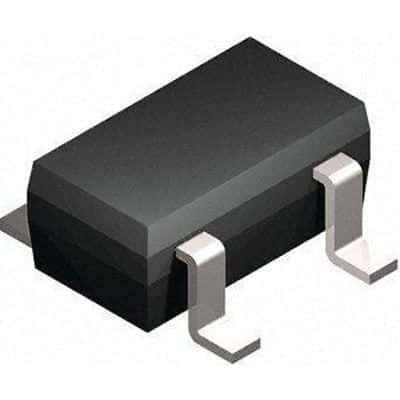

Product Images
