The TC7107CLW is a single-channel analog-to-digital converter with a supply voltage of 5V and an operating temperature range of 0°C to 70°C. It has a power consumption of 10mW and a power dissipation of 1.23W. The device is packaged in a PLCC package and is RoHS compliant.
PackagePLCC
MountingSurface Mount
PolarityUnipolar
Power10mW
Quick Jump:
Technical Specifications
Microchip TC7107CLW technical specifications.
General
| Package/Case | PLCC |
| Dual Supply Voltage | 5V |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 1.8mA |
| Mount | Surface Mount |
| Number of Analog Inputs | 1 |
| Number of Elements | 1 |
| Number of LEDs | 7 |
| Number of Segments | 24 |
| Operating Supply Current | 800uA |
| Operating Supply Voltage | 5V |
| Output Voltage | 700mV |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Power Consumption | 10mW |
| Power Dissipation | 1.23W |
| Resolution | 3.5b |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC7107CLW Datasheet
Download the complete datasheet for Microchip TC7107CLW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

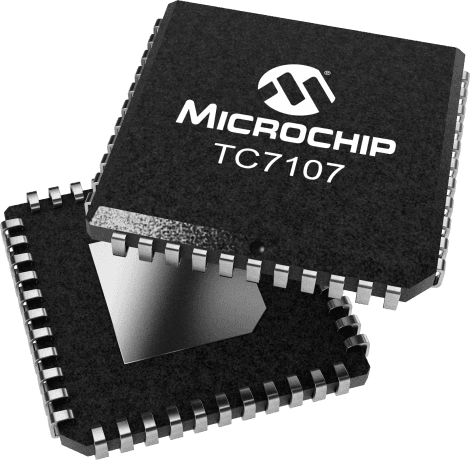

Product Images
