The TC7107IPL is an analog-to-digital converter with a resolution of 3.5 bits. It operates from a single 5V supply and has a maximum supply current of 1.8mA. The device is packaged in a 40-pin PDIP package and is suitable for through-hole mounting. The operating temperature range is from -25°C to 85°C. The TC7107IPL is RoHS compliant and lead free.
PackagePDIP
MountingThrough Hole
PolarityUnipolar
Power1.23W
Quick Jump:
Technical Specifications
Microchip TC7107IPL technical specifications.
General
| Package/Case | PDIP |
| Dual Supply Voltage | 5V |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Current | 1.8mA |
| Mount | Through Hole |
| Number of Analog Inputs | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of LEDs | 7 |
| Number of Segments | 24 |
| Operating Supply Current | 800uA |
| Operating Supply Voltage | 5V |
| Output Voltage | 700mV |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Power Consumption | 1.23W |
| Power Dissipation | 1.23W |
| Resolution | 3.5b |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC7107IPL Datasheet
Download the complete datasheet for Microchip TC7107IPL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

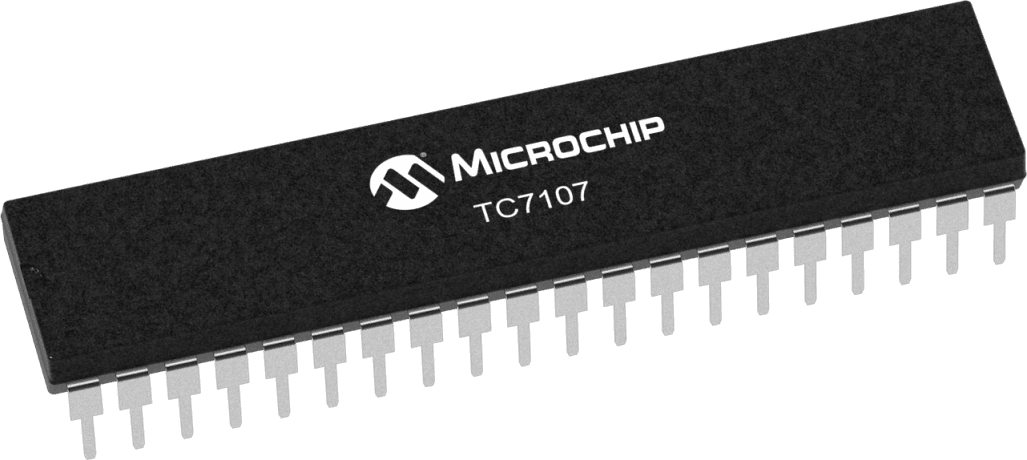

Product Images
