The TC7126ACKW is a single-channel analog-to-digital converter from Microchip, packaged in a PQFP with 96 units per tray. It operates within a temperature range of 0 to 70°C and consumes 55uA of supply current at 15V. This lead-free device has a maximum power dissipation of 1W and is RoHS compliant.
PackagePQFP
MountingSurface Mount
PolarityUnipolar
Power1W
Quick Jump:
Technical Specifications
Microchip TC7126ACKW technical specifications.
General
| Package/Case | PQFP |
| Display Type | LCD |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1W |
| Mount | Surface Mount |
| Number of Analog Inputs | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 55uA |
| Operating Supply Voltage | 15V |
| Package Quantity | 96 |
| Packaging | Tray |
| Polarity | Unipolar |
| Power Dissipation | 1W |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC7126ACKW Datasheet
Download the complete datasheet for Microchip TC7126ACKW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

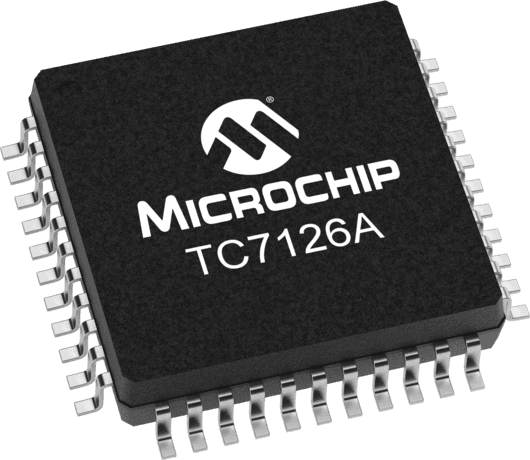

Product Images
