Microchip
TC7129CKW
1-CH 4-BIT DUAL-SLOPE ADC, PARALLEL ACCESS, PQFP44, 10 X 10 MM, PLASTIC, MO-122-AA-1, QFP-44
Frequency360kHz
PackagePQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC7129CKW technical specifications.
General
Package/Case
PQFP
Display Type
LCD
Dual Supply Voltage
9V
Height
2.1mm
Lead Free
Lead Free
Length
0.393inch
Max Frequency
360kHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Current
1.3mA
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Segments
7
Operating Supply Current
800uA
Operating Supply Voltage
15V
Package Quantity
96
Packaging
Tray
RoHS Compliant
Yes
Touchscreen
No
Width
0.394inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC7129CKW Datasheet
Download the complete datasheet for Microchip TC7129CKW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

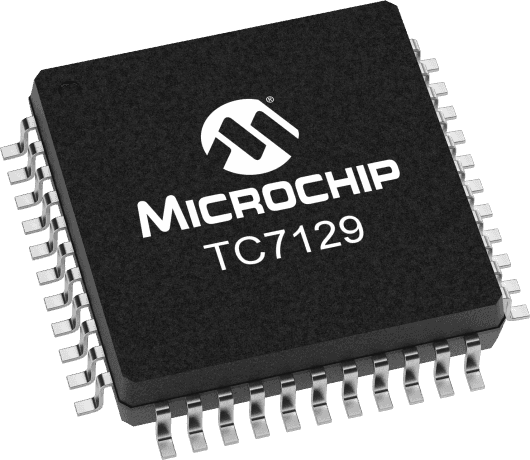

Product Images
