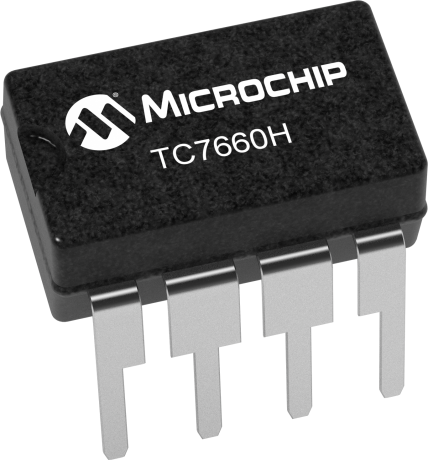

Switched capacitor regulator featuring a 120kHz maximum switching frequency. This inverting logic function operates with a minimum input voltage of 1.5V and a maximum of 10V, delivering a fixed negative output voltage ranging from -1.5V to -10V. Designed for through-hole mounting in a PDIP package, it provides a single output with up to 20mA of current and 730mW of power. RoHS compliant and lead-free, this charge pump topology component offers a maximum operating temperature of 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TC7660HCPA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Frequency | 120kHz |
| Lead Free | Lead Free |
| Logic Function | Inverting |
| Max Input Voltage | 10V |
| Min Input Voltage | 1.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Voltage | -10V |
| Min Output Voltage | -1.5V |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 1.5V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 20mA |
| Output Power | 730mW |
| Output Type | Fixed |
| Output Voltage | -1.5V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
| Weight | 0.032805oz |
| RoHS | Compliant |
