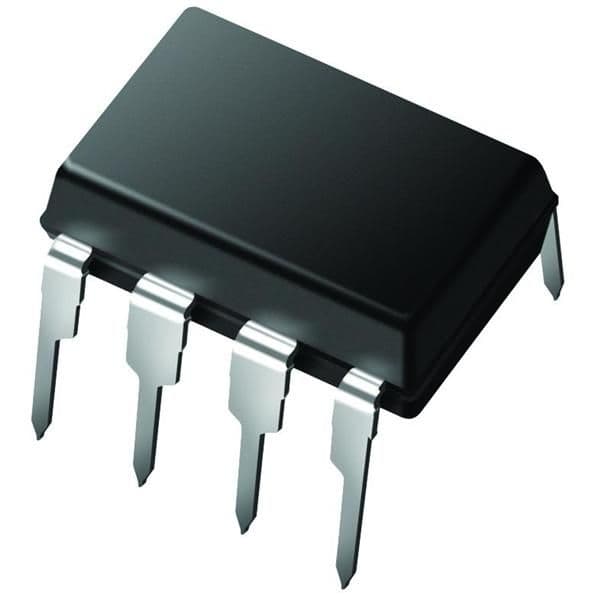

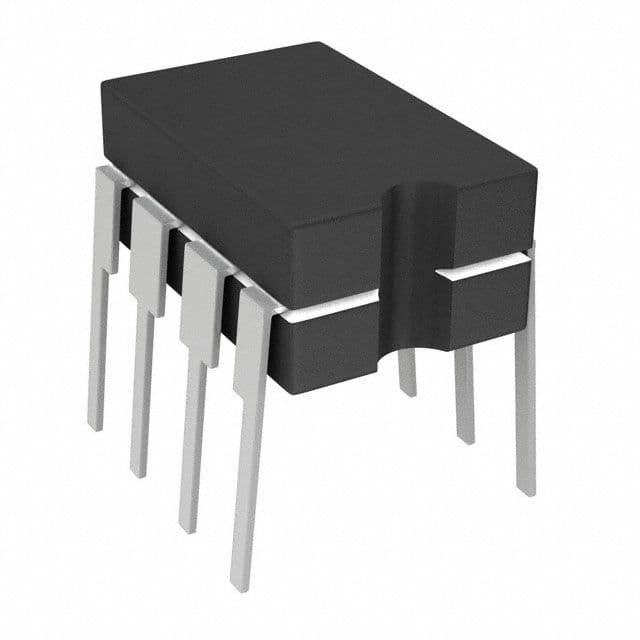

The TC7660SEJA is an inverting DC/DC controller with a boost topology, adjustable output voltage of -12V, and an output power of 800mW. It is packaged in a CDIP package and is available in a quantity of 56 per rail/Tube packaging. The device operates over a temperature range of -40°C to 85°C and is RoHS compliant. It is a lead-free device with a logic function of inverting and a maximum output current of 20mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TC7660SEJA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | CDIP |
| Lead Free | Lead Free |
| Logic Function | Inverting |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 20mA |
| Output Power | 800mW |
| Output Type | Adjustable |
| Output Voltage | -12V |
| Package Quantity | 56 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Boost |
| Width | 6.73mm |
| RoHS | Compliant |
