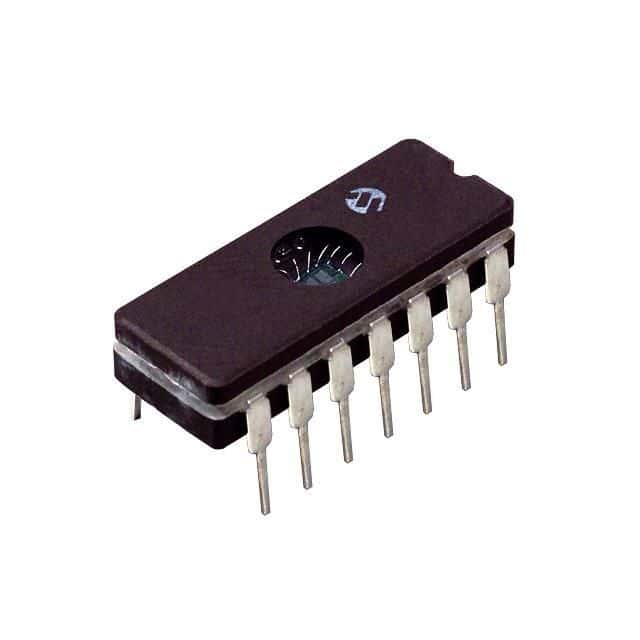

The TC9400EJD is a dual supply op-amp with a maximum operating temperature of 85°C and a maximum frequency of 100kHz. It is available in a CDIP-14 package and is mounted through a hole. The op-amp has a linearity of 0.05% and is RoHS compliant. It operates on a dual supply voltage between 4V and 7.5V, and is also compatible with a single supply voltage between 8V and 15V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TC9400EJD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip TC9400EJD technical specifications.
| Package/Case | CDIP |
| Dual Supply Voltage | 5V |
| Lead Free | Lead Free |
| Linearity | 0.05% |
| Max Dual Supply Voltage | 7.5V |
| Min Dual Supply Voltage | 4V |
| Max Frequency | 100kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 8V |
| Mount | Through Hole |
| Package Quantity | 29 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| RoHS | Compliant |
