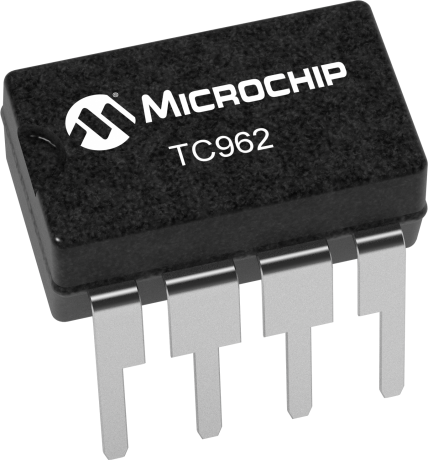

Inverting charge pump IC with a voltage range of -3V to -18V, capable of delivering up to 80mA output current. Features a maximum input and supply voltage of 18V, operating between 0°C and 70°C. This component supports through-hole and surface mount configurations, packaged in a PDIP for rail/tube distribution. RoHS compliant and designed for automotive applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TC962CPA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Height | 0.16inch |
| Lead Free | Lead Free |
| Length | 0.4inch |
| Logic Function | Inverting |
| Max Input Voltage | 18V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 80mA |
| Max Output Voltage | -3V |
| Min Output Voltage | -18V |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Through Hole, Surface Mount |
| Number of Outputs | 1 |
| Output Current | 80mA |
| Output Power | 730mW |
| Output Type | Fixed, Adjustable |
| Output Voltage | -3V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 24kHz |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
| Voltage Rating | -18V |
| Weight | 0.032805oz |
| Width | 0.26inch |
| RoHS | Compliant |
