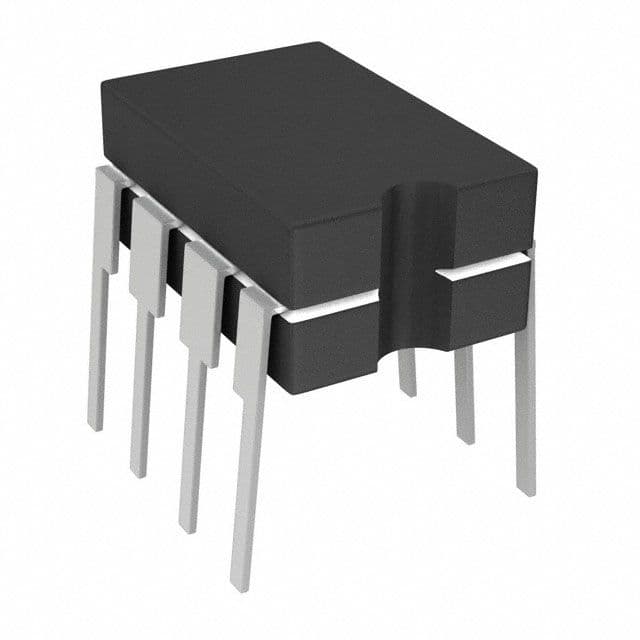

The TC962IJA is a single-output inverting DC/DC controller from Microchip. It operates over a temperature range of -25°C to 85°C and is available in a CDIP package. The device is RoHS compliant and features an adjustable output voltage of -18V with a maximum output current of 80mA. The TC962IJA is suitable for use in a variety of applications, including power management and DC/DC conversion.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TC962IJA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | CDIP |
| Lead Free | Lead Free |
| Logic Function | Inverting |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 80mA |
| Output Power | 800mW |
| Output Type | Adjustable |
| Output Voltage | -18V |
| Package Quantity | 56 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Width | 6.73mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip TC962IJA to view detailed technical specifications.
