Surface mount supervisory circuit with a 4V threshold voltage, featuring active-low, push-pull output. Monitors a single voltage with a reset timeout of 140ms. Operates from 1V to 5.5V supply, with a maximum power dissipation of 320mW and a quiescent current of 12uA. Packaged in a 3-pin SOT-23 (TO-236-3) for tape and reel deployment.
PackageTO-236-3
Current12uA
MountingSurface Mount
Power320mW
Quick Jump:
Technical Specifications
Microchip TCM809JVNB713 technical specifications.
General
Package/Case
TO-236-3
Height
1.02mm
Lead Free
Lead Free
Length
3.04mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
320mW
Max Reset Threshold Voltage
4.06V
Min Reset Threshold Voltage
3.93V
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
12uA
Output
TOTEM-POLE
Overvoltage Threshold
4.06V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
320mW
Quiescent Current
12uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
12uA
Threshold Voltage
4V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
3.93V
Watchdog Timer
No
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip TCM809JVNB713 Datasheet
Download the complete datasheet for Microchip TCM809JVNB713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

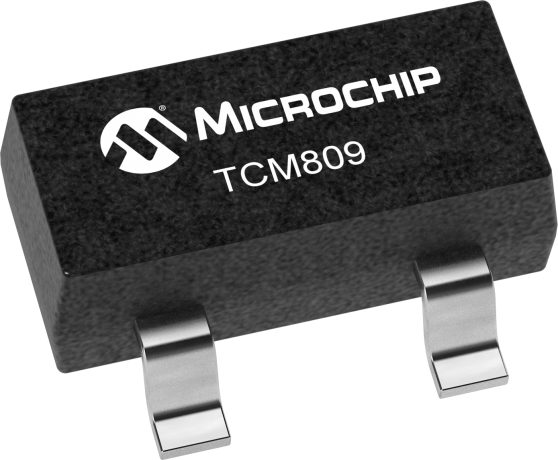

Product Images
