Surface mount supervisory circuit with a 3.08V threshold voltage, monitoring a single voltage. Features active-low, push-pull output and a 140ms reset timeout. Operates from 1V to 5.5V supply voltage with a low 9µA operating supply current. Packaged in a 3-pin SOT-23 (TO-236-3) for tape and reel distribution, with a maximum power dissipation of 320mW and an operating temperature range of -40°C to 125°C.
PackageTO-236-3
Current9uA
MountingSurface Mount
Power320mW
Quick Jump:
Technical Specifications

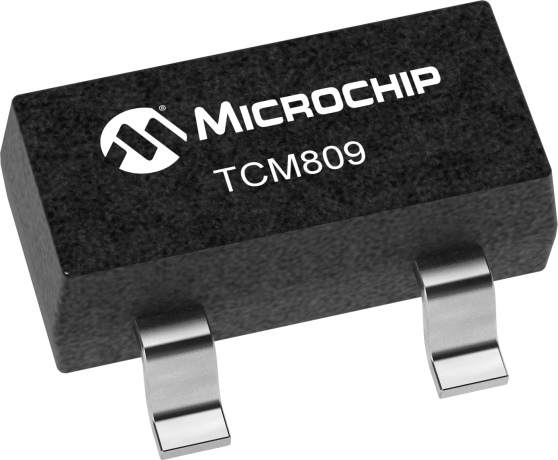

Microchip TCM809TVNB713 technical specifications.
General
Package/Case
TO-236-3
Height
1.12mm
Lead Free
Lead Free
Length
3.04mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
320mW
Max Reset Threshold Voltage
3.11V
Min Reset Threshold Voltage
3.04V
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
9uA
Output
TOTEM-POLE
Overvoltage Threshold
3.11V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
320mW
Quiescent Current
12uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
9uA
Threshold Voltage
3.08V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
3.04V
Watchdog Timer
No
Width
2.64mm
Compliance
RoHS
Compliant
Datasheet
Microchip TCM809TVNB713 Datasheet
Download the complete datasheet for Microchip TCM809TVNB713 to view detailed technical specifications.
