1-channel power supply support circuit, SC-70 package, surface mount, 3-pin. Features a reset threshold voltage range of 4.56V to 4.7V, with a maximum supply voltage of 5.5V and a minimum of 1V. Operates with a quiescent current of 12uA and a reset timeout of 140ms. This lead-free, RoHS-compliant component offers a maximum power dissipation of 174mW and an operating temperature range of -40°C to 125°C.
PackageSC
Current12uA
MountingSurface Mount
Power174mW
Quick Jump:
Technical Specifications

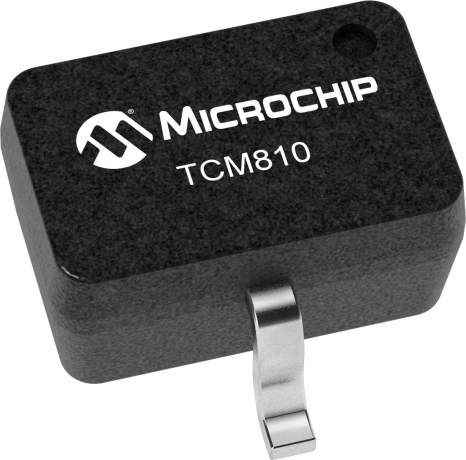

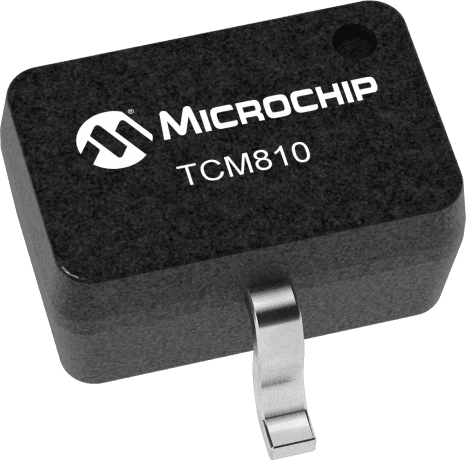

Microchip TCM810LVLB713 technical specifications.
General
| Package/Case | SC |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 2.25mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 174mW |
| Max Reset Threshold Voltage | 4.7V |
| Min Reset Threshold Voltage | 4.56V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 12uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 4.7V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 174mW |
| Quiescent Current | 12uA |
| Reach SVHC Compliant | No |
| Reset | Active High |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Supply Current | 12uA |
| Threshold Voltage | 4.63V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.56V |
| Watchdog Timer | No |
| Width | 2.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TCM810LVLB713 Datasheet
Download the complete datasheet for Microchip TCM810LVLB713 to view detailed technical specifications.
