Surface mount, 3-pin, lead-free integrated circuit for power supply support. Features a single channel with a reset threshold voltage of 2.63V, operating between 2.59V and 2.66V. Supports supply voltages from 1V to 5.5V with a low operating supply current of 9µA. Offers active-high reset with a 140ms reset timeout and a maximum power dissipation of 320mW. Packaged in TO-236-3 (SOT-23B) for tape and reel distribution.
PackageTO-236-3
MountingSurface Mount
Power320mW
Quick Jump:
Technical Specifications
Microchip TCM810RENB713 technical specifications.
General
| Package/Case | TO-236-3 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 320mW |
| Max Reset Threshold Voltage | 2.66V |
| Min Reset Threshold Voltage | 2.59V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 9uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 2.66V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 320mW |
| Quiescent Current | 12uA |
| Reach SVHC Compliant | Unknown |
| Reset | Active High |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Threshold Voltage | 2.63V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.59V |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TCM810RENB713 Datasheet
Download the complete datasheet for Microchip TCM810RENB713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

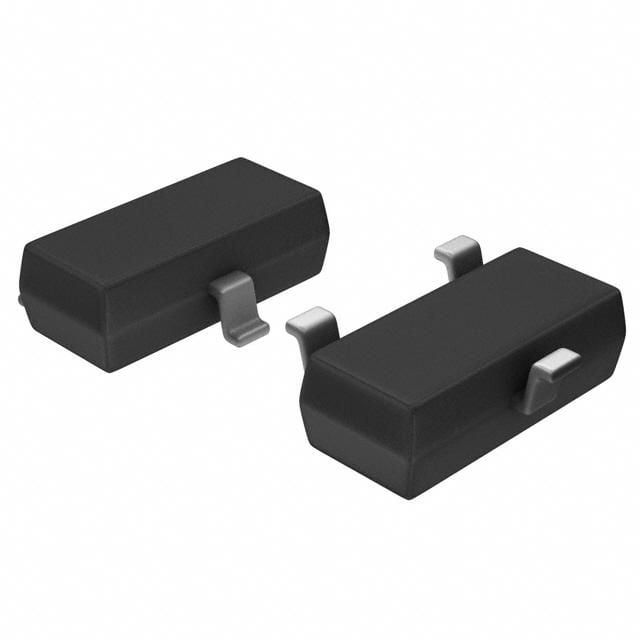

Product Images
