1-channel power supply support circuit, surface mount, TO-236-3 package. Features active-high reset with a threshold voltage range of 2.89V to 2.96V, and a reset timeout of 140ms. Operates from 1V to 5.5V supply voltage with a low operating supply current of 9µA. Maximum power dissipation is 320mW, with an operating temperature range of -40°C to 85°C. Lead-free and RoHS compliant.
PackageTO-236-3
MountingSurface Mount
Power320mW
Quick Jump:
Technical Specifications
Microchip TCM810SENB713 technical specifications.
General
| Package/Case | TO-236-3 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 320mW |
| Max Reset Threshold Voltage | 2.96V |
| Min Reset Threshold Voltage | 2.89V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 9uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 2.96V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 320mW |
| Quiescent Current | 12uA |
| Reset | Active High |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Threshold Voltage | 2.93V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.89V |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TCM810SENB713 Datasheet
Download the complete datasheet for Microchip TCM810SENB713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

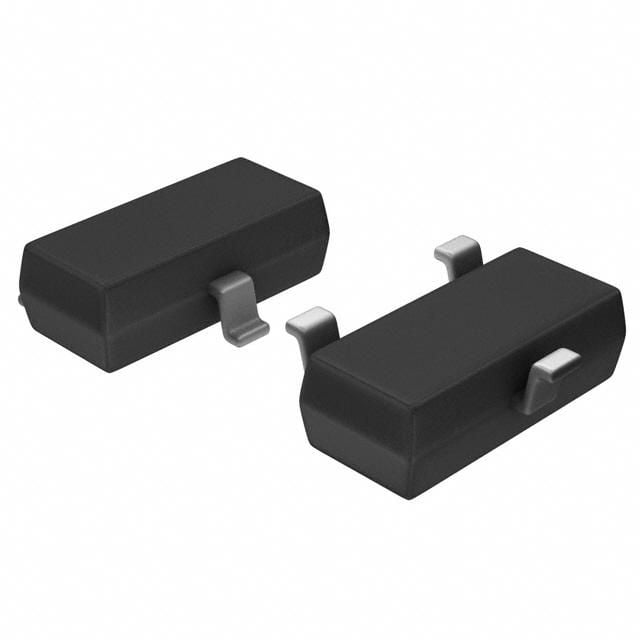

Product Images
