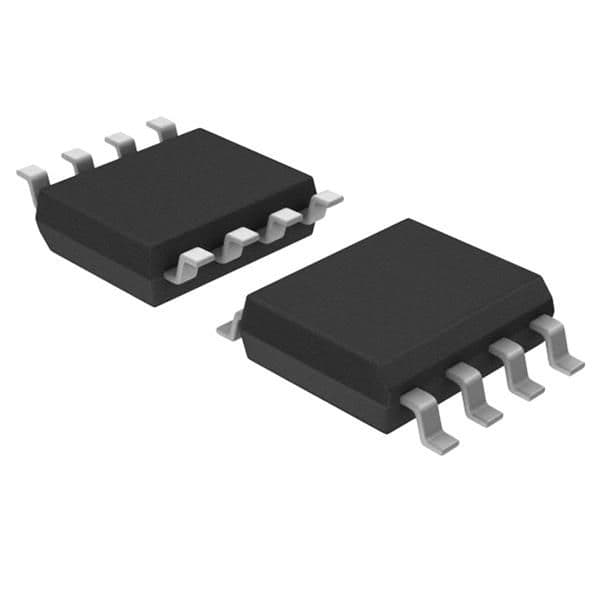

The TCN75 is a 9-bit digital temperature sensor with I2C and SMBus interfaces. It operates over a temperature range of -55°C to 125°C. The device has a maximum supply voltage of 5.5V and a minimum supply voltage of 2.7V. The TCN75 has a resolution of 8 bits and an operating supply current of 1mA. It is available in a lead-free SOIC package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TCN75-5.0MOA713G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Interface | I2C, SMBus, 2-Wire, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 9 |
| Operating Supply Current | 1mA |
| Output Current | 6mA |
| Output Type | Digital, I2C |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Resolution | 8b |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Microchip TCN75-5.0MOA713G to view detailed technical specifications.
