Digital serial relative humidity and temperature sensor with 12-bit resolution and 2% accuracy. Features I2C, SMBus, and 2-wire serial interface, operating from 2.7V to 5.5V. Encased in an 8-pin MSOP package (3mm x 3mm x 0.85mm) for surface mounting. Suitable for automotive applications with a wide operating temperature range of -55°C to 125°C.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TCN75AVUA technical specifications.
General
Accuracy
2%
Package/Case
MSOP
Height
0.85mm
Interface
I2C, SMBus, 2-Wire, Serial
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
12
Operating Supply Current
500uA
Output Current
1uA
Output Type
Digital, I2C
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sensor Type
Temperature
Termination
SMD/SMT
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip TCN75AVUA Datasheet
Download the complete datasheet for Microchip TCN75AVUA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

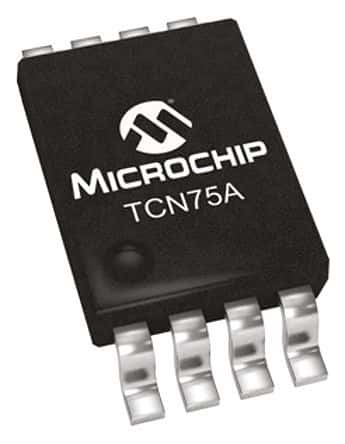

Product Images
