MICROCHIP

TN0604N3-G

Datasheet

Microchip

TN0604N3-G

Name: TN0604N3-G Microchip
Brand: Microchip
SKU: TN0604N3-G

40V 700mA N-CH JFET TO-92

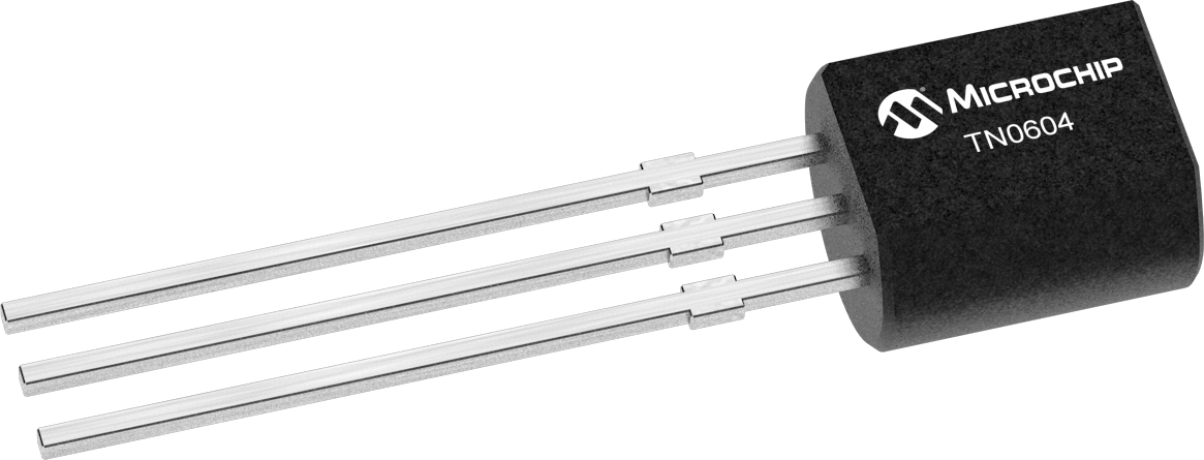

N-channel small signal MOSFET in a TO-92 package, featuring a 40V drain-to-source breakdown voltage and 700mA continuous drain current. This through-hole mounted component offers a low 750mΩ drain-to-source resistance (Rds On Max) and fast switching times with a 10ns turn-on delay and 20ns fall time. Operating across a wide temperature range of -55°C to 150°C, it has a maximum power dissipation of 740mW and an input capacitance of 190pF.

PackageTO-92

MountingThrough Hole

PolarityN-CHANNEL

Power740mW

Quick Jump:

Technical Specifications

Microchip TN0604N3-G technical specifications.

General

Package/Case	TO-92
Continuous Drain Current (ID)	700mA
Drain to Source Breakdown Voltage	40V
Drain to Source Resistance	750mR
Fall Time	20ns
Gate to Source Voltage (Vgs)	20V
Height	5.33mm
Input Capacitance	190pF
Length	5.21mm
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	740mW
Mount	Through Hole
Number of Channels	1
Number of Elements	1
Package Quantity	1000
Packaging	Bulk
Polarity	N-CHANNEL
Power Dissipation	740mW
Radiation Hardening	No
Rds On Max	750mR
Turn-Off Delay Time	25ns
Turn-On Delay Time	10ns
Weight	0.016oz
Width	4.19mm
