MICROCHIP

TP2104K1-G

Datasheet

P-CH JFET, 160mA, -40V, 6R, SOT-23-3, TO-236AB

Microchip

TP2104K1-G

Name: TP2104K1-G Microchip
Brand: Microchip
SKU: TP2104K1-G

P-CH JFET, 160mA, -40V, 6R, SOT-23-3, TO-236AB

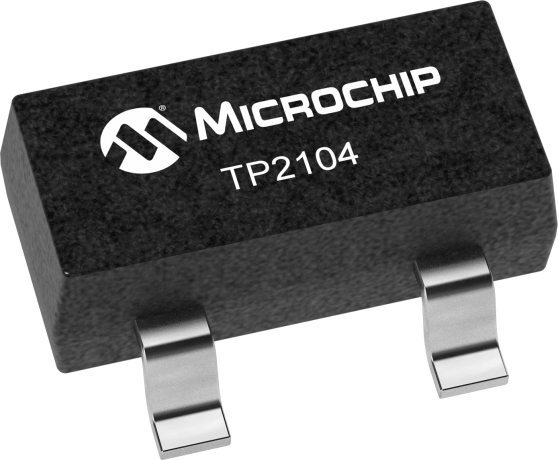

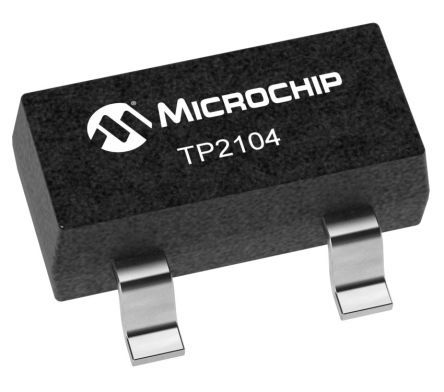

P-CHANNEL, small signal MOSFET in a SOT-23-3 package. Features 160mA continuous drain current and -40V drain-to-source breakdown voltage. Offers 6 Ohms drain-to-source resistance and 60pF input capacitance. Operates from -55°C to 150°C with 360mW power dissipation. Surface mountable with 4ns turn-on delay and 5ns turn-off delay. RoHS compliant.

PackageSOT-23-3

MountingSurface Mount

PolarityP-CHANNEL

Power360mW

Quick Jump:

Technical Specifications

Microchip TP2104K1-G technical specifications.

General

Package/Case	SOT-23-3
Continuous Drain Current (ID)	160mA
Drain to Source Breakdown Voltage	-40V
Drain to Source Resistance	6R
Drain to Source Voltage (Vdss)	-40V
Fall Time	4ns
Gate to Source Voltage (Vgs)	20V
Height	0.95mm
Input Capacitance	60pF
Length	2.9mm
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	360mW
Mount	Surface Mount
Number of Channels	1
Package Quantity	3000
Packaging	Tape and Reel
Polarity	P-CHANNEL
Power Dissipation	360mW
Radiation Hardening	No
Rds On Max	6R
RoHS Compliant	Yes
Turn-Off Delay Time	5ns
Turn-On Delay Time	4ns
Weight	0.050717oz
Width	1.3mm
