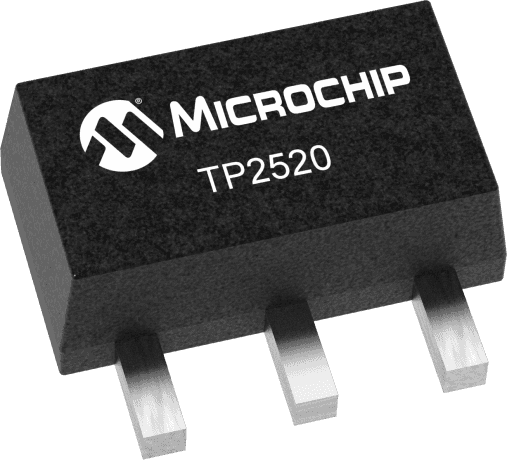

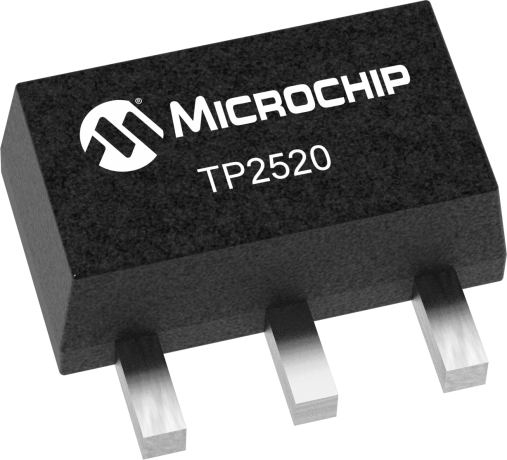

P-channel power MOSFET, TO-243AA package, offering -200V drain-source breakdown voltage and 12 Ohm drain-source resistance. Features 260mA continuous drain current, 1.6W power dissipation, and operates from -55°C to 150°C. Surface mount design with fast switching times, including 10ns turn-on delay and 15ns fall time.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TP2520N8-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-89 |
| Continuous Drain Current (ID) | 260mA |
| Drain to Source Breakdown Voltage | -200V |
| Drain to Source Resistance | 12R |
| Drain to Source Voltage (Vdss) | -200V |
| Fall Time | 15ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.6W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Power Dissipation | 1.6W |
| Radiation Hardening | No |
| Turn-Off Delay Time | 20ns |
| Turn-On Delay Time | 10ns |
| Weight | 0.001862oz |
| Width | 2.6mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip TP2520N8-G to view detailed technical specifications.
