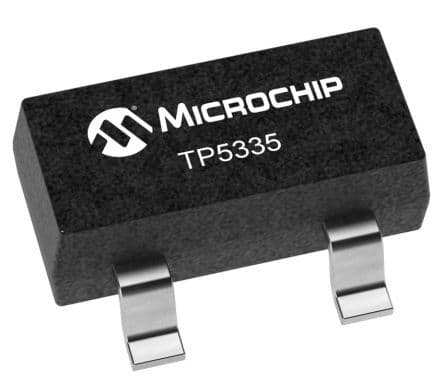

P-CHANNEL, Si, SMALL SIGNAL MOSFET, TO-236AB package. Features 85mA continuous drain current and -350V drain to source breakdown voltage. Offers 30 Ohms drain to source resistance (Rds On Max) and 110pF input capacitance. Operates within a -55°C to 150°C temperature range with 360mW power dissipation. Surface mount component with 15ns fall time and 20ns turn-on delay.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TP5335K1-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-236-3 |
| Continuous Drain Current (ID) | 85mA |
| Drain to Source Breakdown Voltage | -350V |
| Drain to Source Resistance | 30R |
| Drain to Source Voltage (Vdss) | 350V |
| Fall Time | 15ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 110pF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 360mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Power Dissipation | 360mW |
| Rds On Max | 30R |
| Turn-Off Delay Time | 25ns |
| Turn-On Delay Time | 20ns |
| Weight | 0.050717oz |
| RoHS | Compliant |
