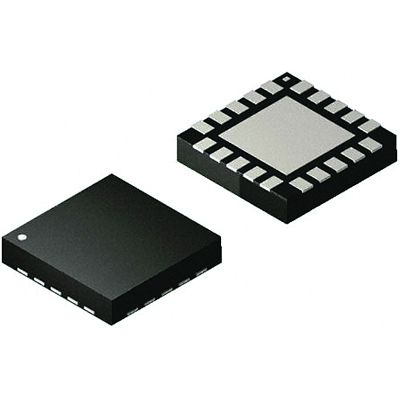

Single USB power switch for USB 2.0 applications, featuring a 5.5V maximum supply voltage and 2.85A output current. This surface mountable IC operates within a -40°C to 85°C temperature range and is housed in a 4mm x 4mm QFN package with a height of 0.85mm. It provides two outputs from a single port and a single switch, with a typical operating supply current of 650µA. The component is RoHS compliant and supplied in a tray of 490 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip UCS1003-1-BP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip UCS1003-1-BP technical specifications.
| Package/Case | QFN |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Number of Ports | 1 |
| Number of Switches | 1 |
| Operating Supply Current | 650uA |
| Output Current | 3A |
| Package Quantity | 490 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| USB Standard | USB 2.0 |
| Weight | 0.004339oz |
| Width | 4mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip UCS1003-1-BP to view detailed technical specifications.
