2-port USB 2.0 hub controller IC, supporting 480Mbps data rates. Features integrated ESD protection and a single transceiver. Operates at 3.3V with a supply voltage range of 3V to 3.6V. Packaged in a 28-pin QFN (5.1mm x 5.1mm x 0.95mm) for surface mounting.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip USB2412-DZK technical specifications.
General
Package/Case
QFN
Data Rate
480Mbps
ESD Protection
Yes
Height
0.95mm
Interface
USB
Lead Free
Lead Free
Length
5.1mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
2
Number of Transceivers
1
Operating Supply Voltage
3.3V
Package Quantity
490
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Width
5.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip USB2412-DZK Datasheet
Download the complete datasheet for Microchip USB2412-DZK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

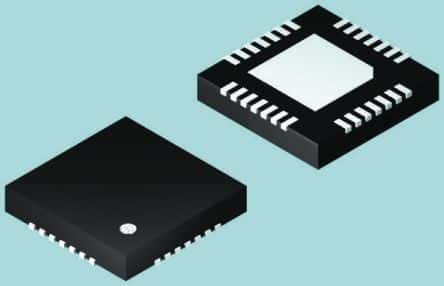

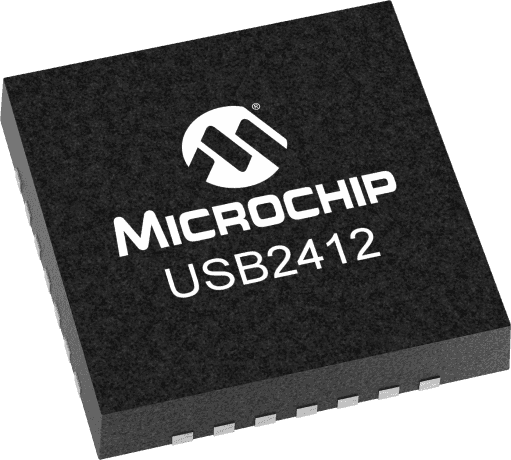

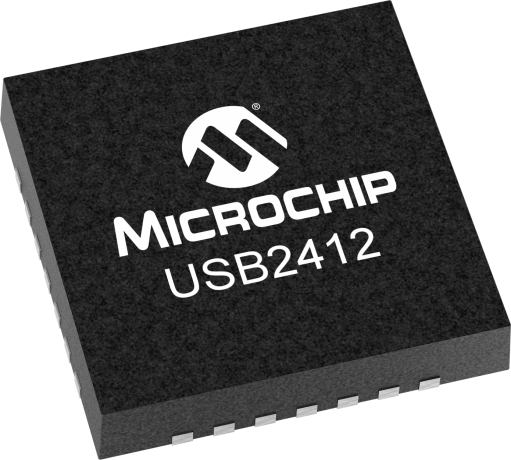

Product Images
