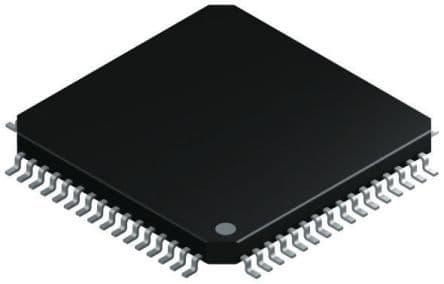

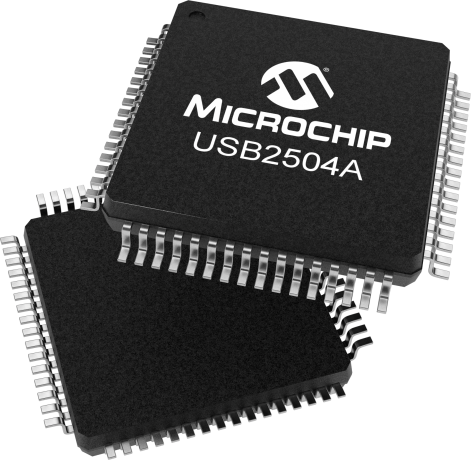

High-performance Universal Serial Bus controller featuring 4 USB 2.0 ports with a maximum data rate of 480Mbps. This integrated circuit offers versatile connectivity through USB, I2C, and Serial interfaces. Operating within a 3V to 3.6V supply voltage range, it consumes 100mA during operation. Packaged in a 64-pin TQFP, this RoHS compliant component is designed for a temperature range of 0°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip USB2504A-JT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TQFP |
| Data Rate | 480Mbps |
| Interface | USB, I2C, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Ports | 4 |
| Operating Supply Current | 100mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 160 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| USB Standard | USB 2.0 |
| RoHS | Compliant |
Download the complete datasheet for Microchip USB2504A-JT to view detailed technical specifications.
