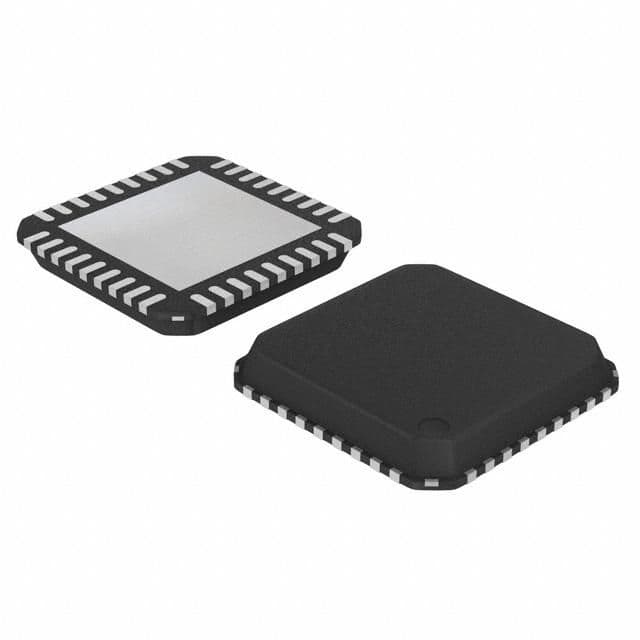

High-speed USB 2.0 hub controller IC supporting low, full, and high-speed operation up to 480Mbps. Features 2 downstream ports and 1 upstream transceiver, with integrated ESD protection. Operates from a 3V to 3.6V supply, with a typical 3.3V operating voltage and 60mA current. Packaged in a 36-pin VQFN (6.15mm x 6.15mm x 0.95mm) for surface mounting, supplied in trays of 490 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip USB2512B-AEZG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip USB2512B-AEZG technical specifications.
| Package/Case | QFN |
| Data Rate | 480Mbps |
| ESD Protection | Yes |
| Height | 0.95mm |
| Interface | USB |
| Lead Free | Lead Free |
| Length | 6.15mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Ports | 2 |
| Number of Transceivers | 1 |
| Operating Supply Current | 60mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Width | 6.15mm |
| RoHS | Compliant |
