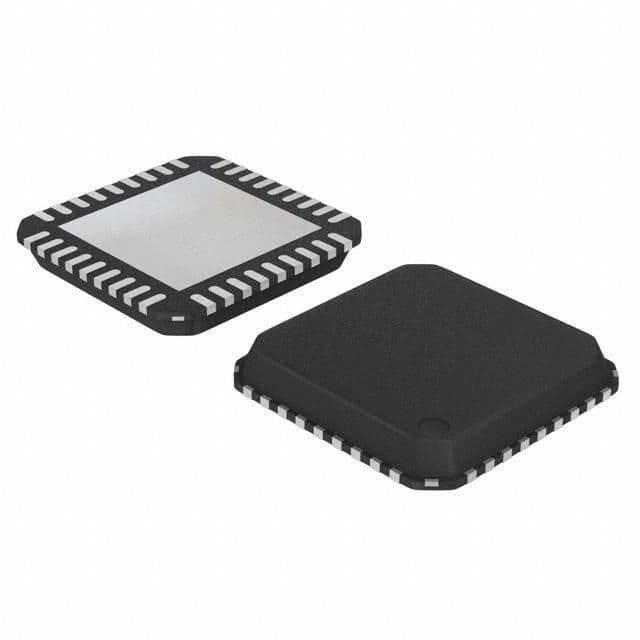

The USB2513B-AEZG is a 3-port USB, I2C, and SMBus controller from Microchip. It operates within a temperature range of 0 to 85°C and is powered by a 3.3V supply, drawing a maximum current of 65mA. The device is packaged in a QFN-36 package, which is compliant with ROHS standards. It is available in a tray packaging format with 490 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip USB2513B-AEZG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip USB2513B-AEZG technical specifications.
| Package/Case | QFN |
| Interface | USB, I2C, SMBus |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Number of Ports | 3 |
| Operating Supply Current | 65mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS | Compliant |
Download the complete datasheet for Microchip USB2513B-AEZG to view detailed technical specifications.
