4-Port USB 2.0 Hub Controller, QFN-36 package, offering 480Mbps data transfer rate. Features integrated ESD protection and operates from a 3V to 3.6V supply voltage, with a typical 3.3V operating voltage and 85mA current. This surface mount component boasts a compact 6.15mm x 6.15mm x 0.95mm footprint and is RoHS compliant.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip USB2514BI-AEZG technical specifications.
General
Package/Case
QFN
Data Rate
480Mbps
ESD Protection
Yes
Height
0.95mm
Interface
USB
Lead Free
Lead Free
Length
6.15mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
4
Number of Transceivers
1
Operating Supply Current
85mA
Operating Supply Voltage
3.3V
Package Quantity
490
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
6.15mm
Compliance
RoHS
Compliant
Datasheet
Microchip USB2514BI-AEZG Datasheet
Download the complete datasheet for Microchip USB2514BI-AEZG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

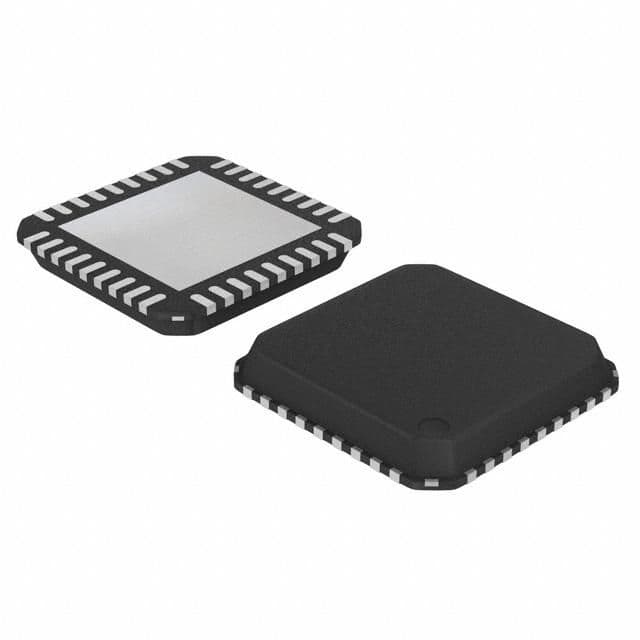

Product Images
