USB 2.0 hub controller IC supporting low-speed, full-speed, and high-speed operation. Features a 3.3V operating voltage and a 64-pin QFN EP package. Offers a parallel interface with a maximum operating temperature of 85°C and a minimum of -40°C. Typical operating supply current is 130mA. Packaged on tape and reel with 3000 units per package, this component is RoHS compliant.
PackageQFN
Quick Jump:
Technical Specifications
Microchip USB2517I-JZX-TR technical specifications.
General
| Package/Case | QFN |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Operating Supply Current | 130mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip USB2517I-JZX-TR Datasheet
Download the complete datasheet for Microchip USB2517I-JZX-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

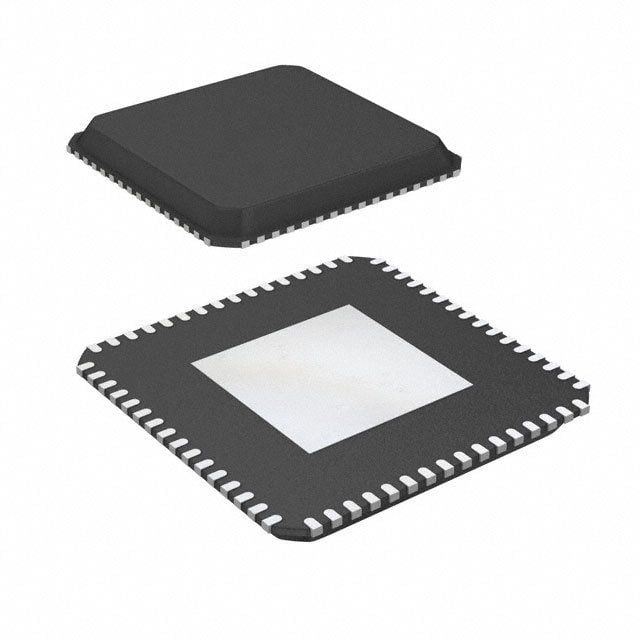

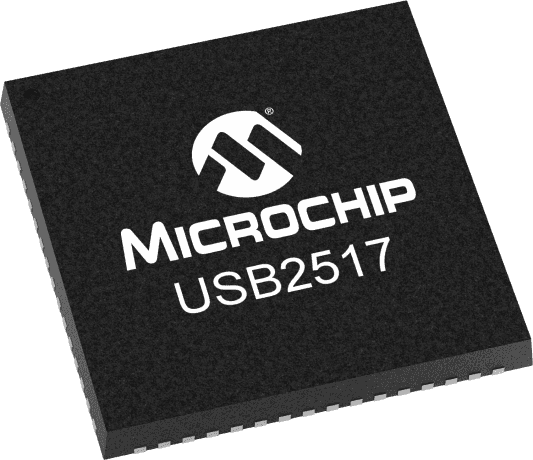

Product Images
