High-speed USB 2.0 flash media controller supporting multiple formats including SD, MMC, and MS. Features 3 ports and 2 transceivers with a serial interface and data rates up to 100Kbps. Operates from a 3V to 3.6V supply, with a typical operating voltage of 3.3V and 70mA current consumption. Includes ESD protection and is RoHS compliant. Packaged in a 64-pin QFN (9.1mm x 9.1mm x 0.95mm) for surface mounting, supplied in trays of 260 units.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip USB2660I-JZX-03 technical specifications.
General
| Package/Case | QFN |
| Data Rate | 100Kbps |
| ESD Protection | Yes |
| Height | 0.95mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 9.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Ports | 3 |
| Number of Transceivers | 2 |
| Operating Supply Current | 70mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 260 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 9.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip USB2660I-JZX-03 Datasheet
Download the complete datasheet for Microchip USB2660I-JZX-03 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

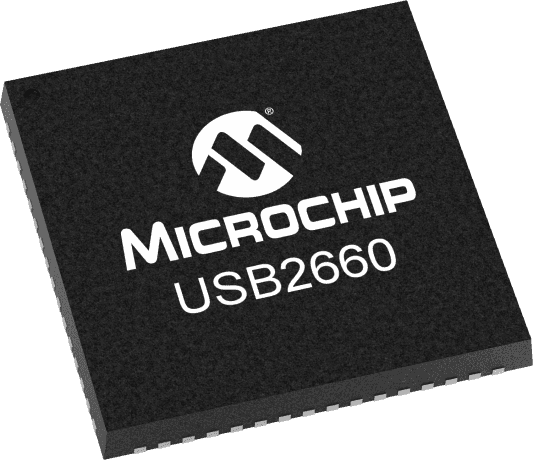

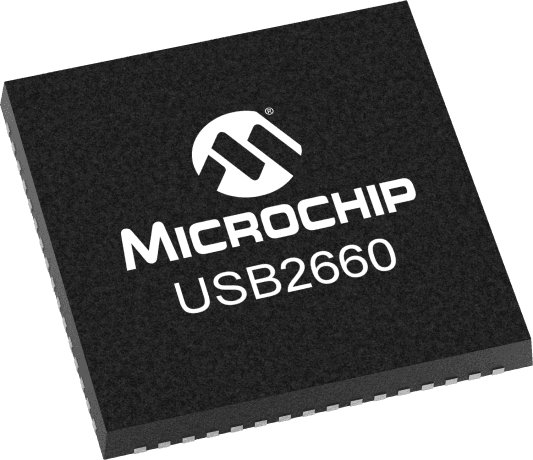

Product Images
