High-speed USB 2.0 transceiver supporting 480Mbps data rates. This single-channel interface IC features integrated ESD protection and operates at a 3.3V supply voltage, with a maximum dual supply voltage of 5.5V. Packaged in a 24-pin QFN (4.15mm x 4.15mm x 0.95mm) for surface mounting, it is RoHS compliant and lead-free. Designed for a wide operating temperature range of -40°C to 85°C, this component is supplied on tape and reel.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip USB3317C-CP-TR technical specifications.
General
| Package/Case | QFN |
| Data Rate | 480Mbps |
| ESD Protection | Yes |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 4.15mm |
| Max Dual Supply Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | flexPWR™ |
| Weight | 0.032741oz |
| Width | 4.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip USB3317C-CP-TR Datasheet
Download the complete datasheet for Microchip USB3317C-CP-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

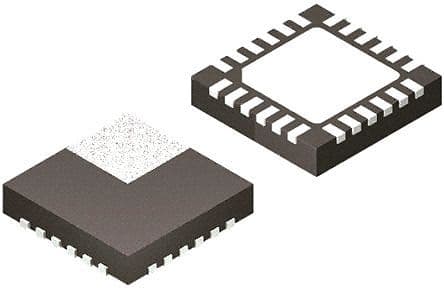

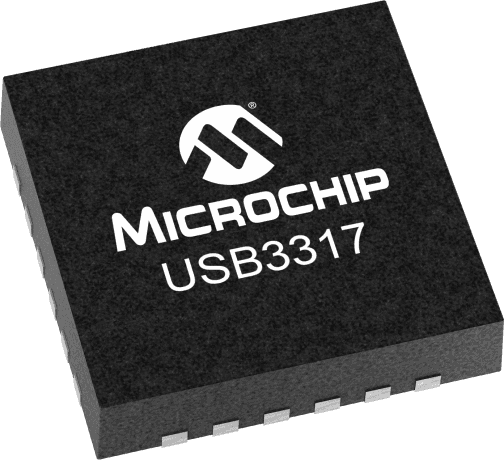

Product Images
