High-performance USB transceiver IC, featuring a single half-duplex transceiver. Operates with a supply voltage of 3.3V, ranging from 3.1V to 5.5V. Designed for surface mounting in a 24-pin QFN package, this RoHS compliant component offers a wide operating temperature range of -40°C to 85°C. Packaged on tape and reel for efficient manufacturing.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip USB3318C-CP-TR technical specifications.
General
| Package/Case | QFN |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3.1V |
| Mount | Surface Mount |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Receiver Hysteresis | 150mV |
| RoHS Compliant | Yes |
| Series | flexPWR™ |
| Simplex/Duplex | Half Duplex |
Compliance
| RoHS | Compliant |
Datasheet
Microchip USB3318C-CP-TR Datasheet
Download the complete datasheet for Microchip USB3318C-CP-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

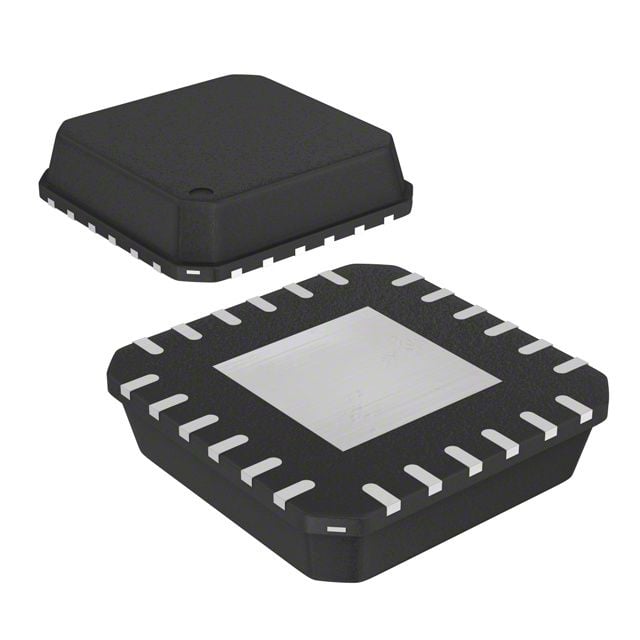

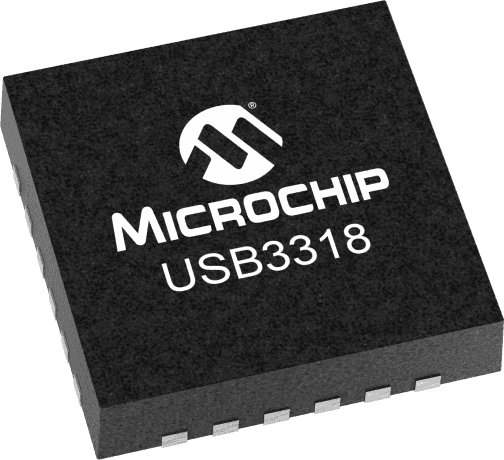

Product Images
