Single-port USB 2.0 transceiver IC in a 32-pin VQFN package, featuring half-duplex operation and 60MHz frequency. This integrated circuit offers ESD protection and operates within a 1.6V to 2V supply voltage range, consuming 5.6mA nominal supply current. Designed for a wide temperature range of -40°C to 85°C, it measures 5mm x 5mm x 0.9mm.
Frequency60MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip USB3320C-EZK technical specifications.
General
| Package/Case | QFN |
| ESD Protection | Yes |
| Frequency | 60MHz |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 2V |
| Min Supply Voltage | 1.6V |
| Nominal Supply Current | 5.6mA |
| Number of Ports | 1 |
| Number of Transceivers | 1 |
| Operating Supply Current | 5.6mA |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Receiver Hysteresis | 50mV |
| Series | flexPWR™ |
| Simplex/Duplex | Half Duplex |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip USB3320C-EZK Datasheet
Download the complete datasheet for Microchip USB3320C-EZK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

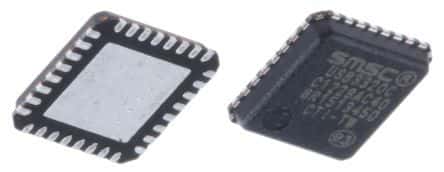

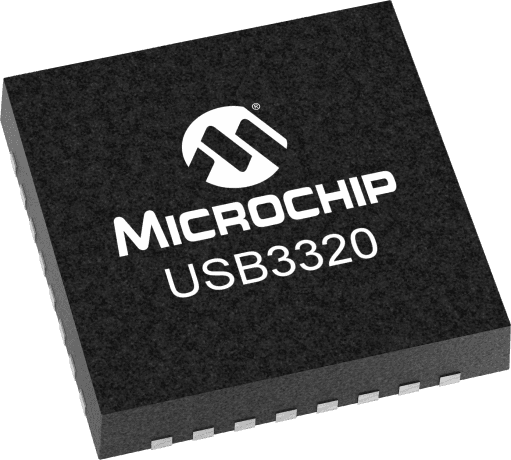

Product Images
