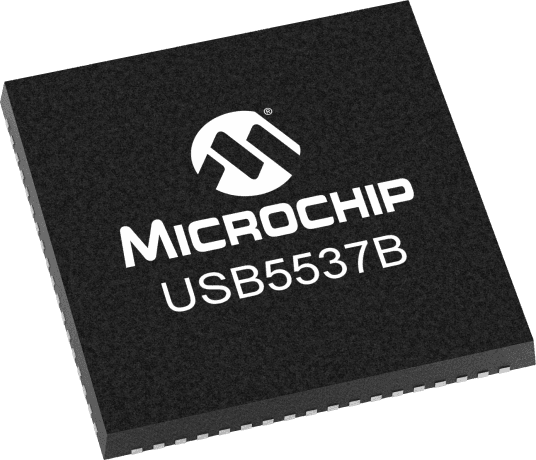

The Microchip USB5537B-6080AKZE is a 7-port interface IC that supports USB, SPI, and SMBus interfaces. It operates at a supply voltage of 5V and is packaged in a QFN-72 package. The IC is RoHS compliant and has ESD protection. It has a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. The package quantity is 168 units per tray.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip USB5537B-6080AKZE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Data Rate | 1.5Mbps |
| ESD Protection | Yes |
| Height | 0.95mm |
| Interface | SPI, SMBus, USB |
| Length | 10.1mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Number of Ports | 7 |
| Number of Transceivers | 7 |
| Operating Supply Voltage | 5V |
| Package Quantity | 168 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Width | 10.1mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip USB5537B-6080AKZE to view detailed technical specifications.
