MICROCHIP

VN0550N3-G

Datasheet

Microchip

VN0550N3-G

Name: VN0550N3-G Microchip
Brand: Microchip
SKU: VN0550N3-G

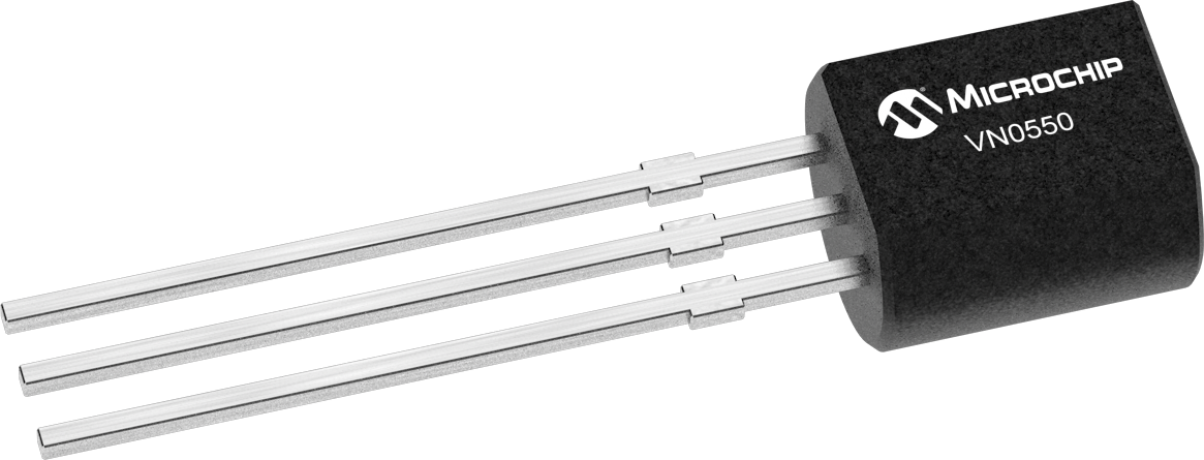

500V 50mA N-CH JFET TO-92

N-channel JFET with 500V drain-to-source breakdown voltage and 50mA continuous drain current. Features 60Ω drain-to-source resistance, 10ns fall time, and 10ns turn-on/off delay times. Operates within a -55°C to 150°C temperature range with 1W maximum power dissipation. Packaged in a TO-92 through-hole mount, this small signal MOSFET is supplied in bulk packaging.

PackageTO-92

MountingThrough Hole

PolarityN-CHANNEL

Power1W

Quick Jump:

Technical Specifications

Microchip VN0550N3-G technical specifications.

General

Package/Case	TO-92
Continuous Drain Current (ID)	50mA
Drain to Source Breakdown Voltage	500V
Drain to Source Resistance	60R
Fall Time	10ns
Gate to Source Voltage (Vgs)	20V
Height	5.33mm
Input Capacitance	55pF
Length	5.21mm
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	1W
Mount	Through Hole
Number of Channels	1
Number of Elements	1
Package Quantity	1000
Packaging	Bulk
Polarity	N-CHANNEL
Power Dissipation	1W
Radiation Hardening	No
Rds On Max	60R
Turn-Off Delay Time	10ns
Turn-On Delay Time	10ns
Weight	0.016oz
Width	4.19mm
