P-CHANNEL, SMALL SIGNAL MOSFET in TO-92 package. Features 280mA continuous drain current and -80V drain-to-source breakdown voltage. Offers 5Ω drain-to-source resistance and 150pF input capacitance. Operates from -55°C to 150°C with 1W maximum power dissipation. Through-hole mounting, lead-free, and RoHS compliant.
PackageTO-92
MountingThrough Hole
PolarityP-CHANNEL
Power1W
Quick Jump:
Technical Specifications
Microchip VP0808L-G technical specifications.
General
Package/Case
TO-92
Continuous Drain Current (ID)
280mA
Drain to Source Breakdown Voltage
-80V
Drain to Source Resistance
5R
Drain to Source Voltage (Vdss)
80V
Fall Time
30ns
Gate to Source Voltage (Vgs)
30V
Height
5.33mm
Input Capacitance
150pF
Lead Free
Lead Free
Length
5.21mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Package Quantity
1000
Packaging
Bulk
Polarity
P-CHANNEL
Power Dissipation
1W
Radiation Hardening
No
Rds On Max
5R
RoHS Compliant
Yes
Turn-Off Delay Time
30ns
Turn-On Delay Time
15ns
Weight
0.016oz
Width
4.19mm
Compliance
RoHS
Compliant
Datasheet
Microchip VP0808L-G Datasheet
Download the complete datasheet for Microchip VP0808L-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

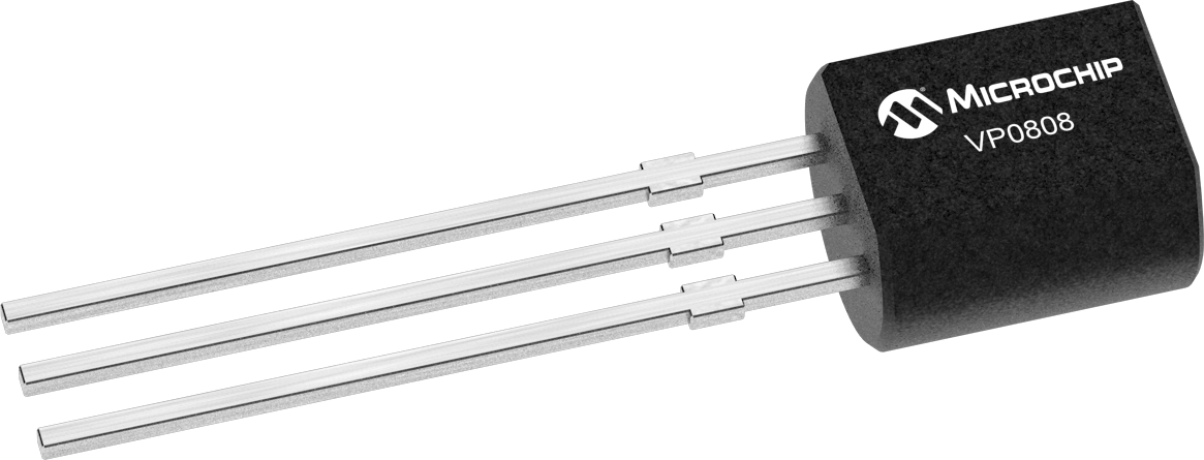

Product Images
