128Mb NOR Flash memory with 8MX16 organization, offering 70ns access time. Features a parallel and serial interface, operating at 40MHz with a 23-bit address bus. Housed in a lead-free TSOP-56 package, this component supports a voltage range of 2.3V to 3.6V and operates from -40°C to 85°C. RoHS compliant.
Frequency40MHz
PackageTSOP
Voltage2.3V
Current28mA
Quick Jump:
Technical Specifications
Micron JS28F128P33TF70A technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
23b
Package/Case
TSOP
Density
128Mb
Frequency
40MHz
Height
1.03mm
Interface
Parallel, Serial
Length
18.6mm
Max Operating Temperature
85°C
Memory Size
128Mb
Memory Type
Non-Volatile, , FLASH, NOR
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Packaging
Tray
Page Size
8Words
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
28mA
Sync/Async
Asynchronous, Synchronous
Voltage
2.3V
Width
14.2mm
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Micron JS28F128P33TF70A Datasheet
Download the complete datasheet for Micron JS28F128P33TF70A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

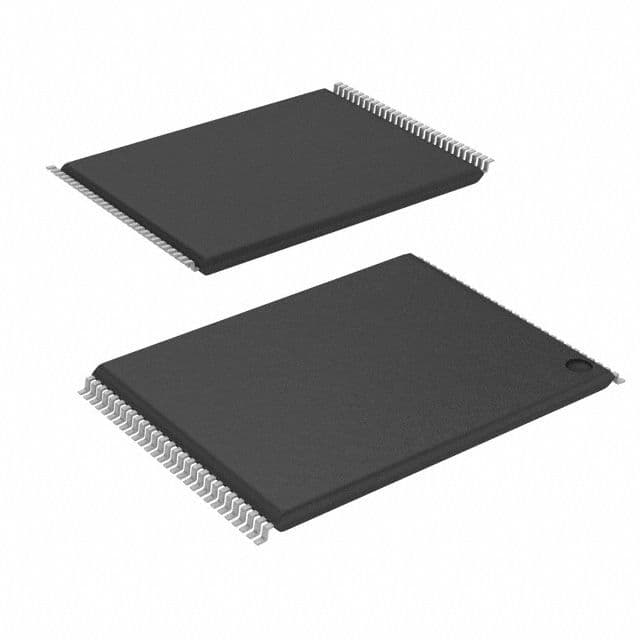

Product Images
